Disposable Titanium Clip Applier
Product Details

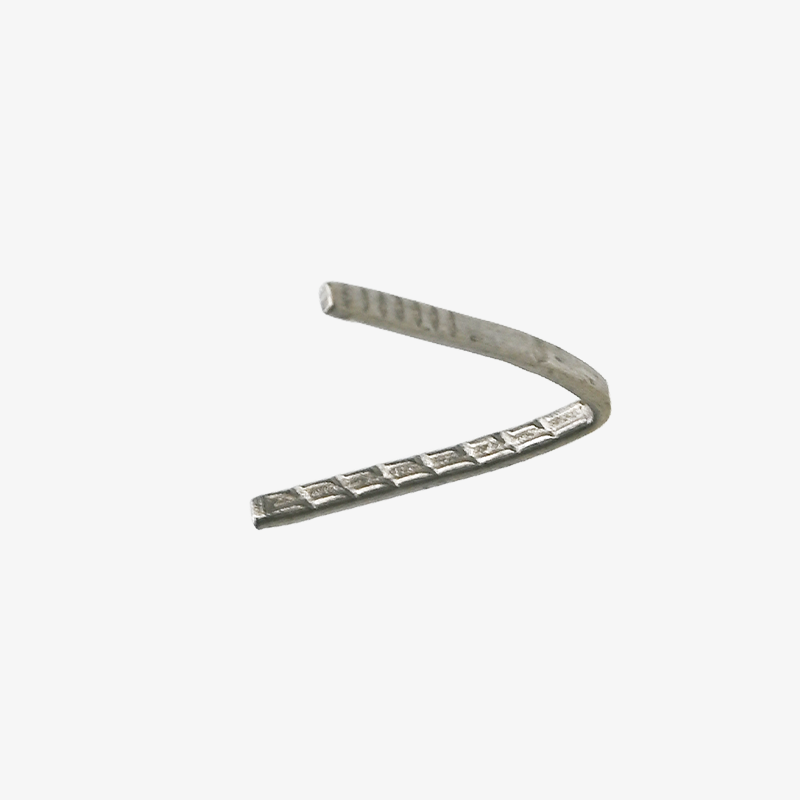

Clips with Anti-slip Slots in cross direction inside the upper and down legs, clamping more securely,anti-slip, anti-collapse.
15pce or 20pcs titanium ligation clips are preloaded in the shaft of the clip applicator, multi-fired，which saves the surgery opeartion time.
The remaining clip quantity can be shown from the transparent PVC shaft or counter.

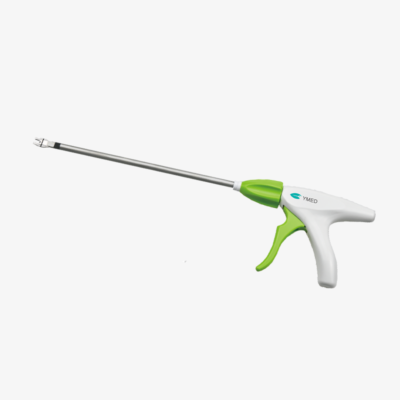

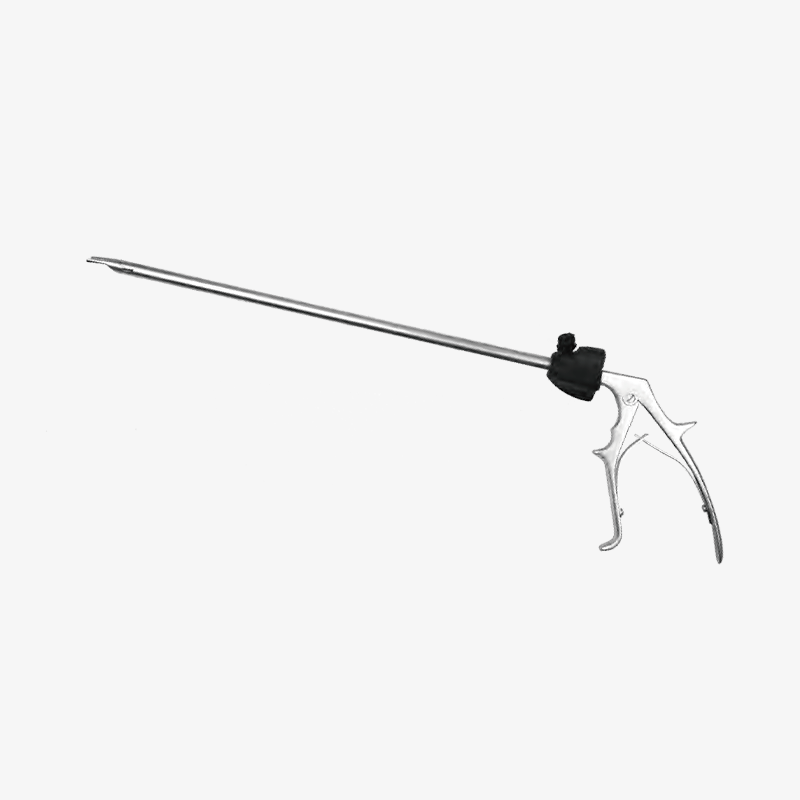

Two kinds of ergonomic hand pieces facilitate control, more
| Model No. | Shaft Diameter(mm) | Working Length(mm) | Clip Size | Clip Specification(mm) | Clip Qty (pcs) |
|||
| Height (before Closed) |
Length (before Closed) |
Length (after Closed) |
Leg Width | |||||
| TQ10-J | ∅10 | 290 | ML | 5.5 | 7.5 | 8.7 | 1 | 20 |
| TQ5 | ∅5 | 330 | 4.4 | 8.1 | 9.1 | 0.75 | 15 | |

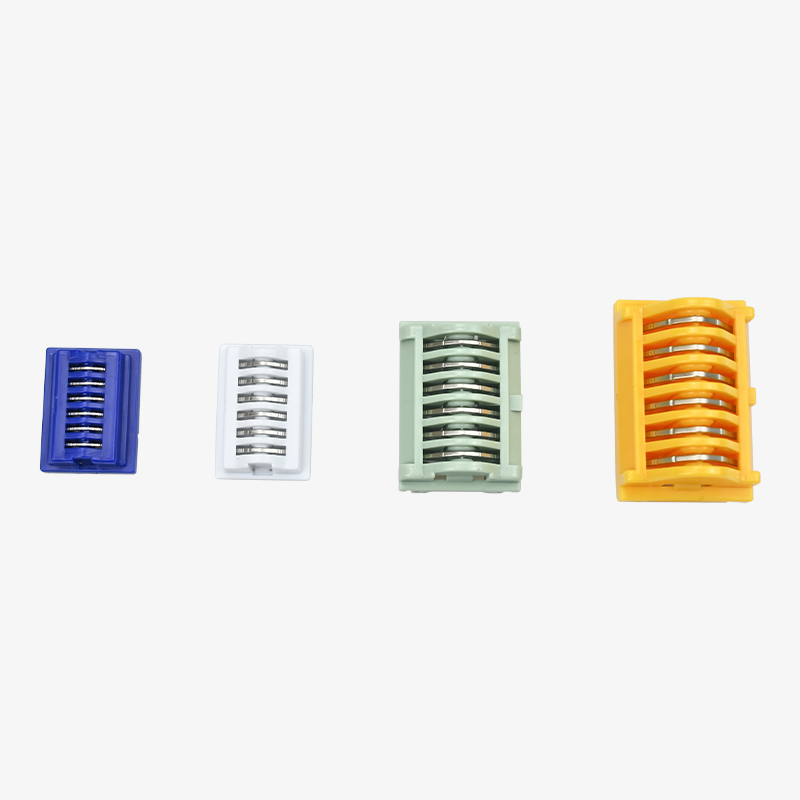

| Model No. | Package | Ligation Range | ||
| LT100-S | 2pcs/pc,3pcs/pc,4pcs/pc,5pcs/pc;6pcs/pc | 0-3mm | ||
| LT200-M | 3-6mm | |||
| LT300-ML | 6-9mm | |||
| LT400-L | 9-12mm | |||
